1. Introduction

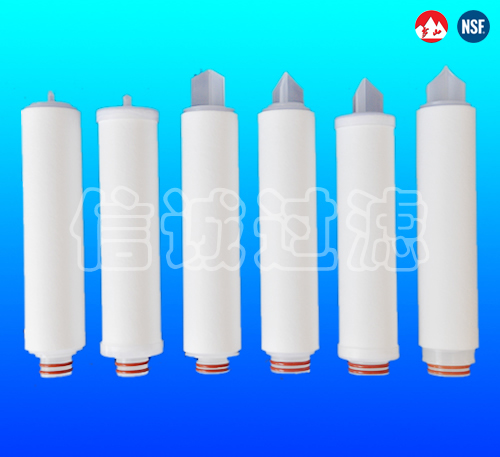

Having passed NSF certification, “XUESHAN” PP melt blown filter cartridge is made
from nontoxic and odorless polypropylene particles which are heated,
melted, sprayed, drawn and formed into tubular cartridge. It is characterized by
excellent filter precision, large flow, slight pressure difference, high capacity of dirt,
small volume, high pressure resistance, corrosion resistance, etc.

Equipped with six 3-spinneret melt blown production lines, we can produce 15,000pcs of melt blown
filter cartridges with excellent quality.

2. Applications

Drinking water filtration

Household Purifier Filtration

Prefiltration for RO

Electronic, electronic & power Industries: pure water, gas, electroplates liquid, presswork and so on.

Chemical & petrochemical Industries: solvent, coatings, magnetism slurry, wash and so on.

Medicine & Pharmacy: pure water injection and ally liquid.

Grocery Industry: food, drink, drinking water, alcohol and so on.

3. Material

Filtration materials: polypropylene (smooth, shallow grooved, deep grooved)

Core: polypropylene, 304 stainless steel

End caps: DOE, 215 end cap, 222 end cap,34 end cap

4. Specifications (Unusual specifications can be manufactured as per the order)

Length: 5″、10″、20″、30″、40″、50″

OD: 45 ～ 120mm

ID: 20 mm、28 mm、30 mm、32 mm、34 mm、38 mm、60 mm、90 mm

Precision: 0.5μm、1μm、5μm、10μm、20μm、30μm、50μm、100μm

5. Main Performances

a. Precision & Flow

Filtration precision(μ)	1	3	5	10	20	30	50
Initial precision(μ)	10-15	15-25	25-35	30-40	35-50	40-60	60-90
Max particle(μ)	15	25	35	40	50	60	90
Flow(L/min)	10	14	17	20	24	28	32

Note: Length of tested filter cartridge is 10″, pressure difference is 0.02MPa,
and the test media is clean water. Other filters are calculated at the ratio mentioned above accordingly.

b. Max. Pressure-resistance ≤ 0.5MPa; Max. Intensity of pressure: 0.2MPa

c. The highest operation temperature≤60℃

6.Models

Models	Introduction
PP-5-10 PPF-5-10 BPP-5-10 PPW-5-10 PPG-5-10	PP melt blown filter cartridge, 5u&10’’ PP melt blown filter cartridge with core, 5u&10’’ PP melt blown filter cartridge (Jumbo; Big Blue), 5u&10’’ Shallow grooved PP melt blown filter cartridge, 5u&10’’ Deep grooved PP melt blown filter cartridge, 5u&10’’

Our PP melt blown filter cartridges are NSF certified.
